JIG
-

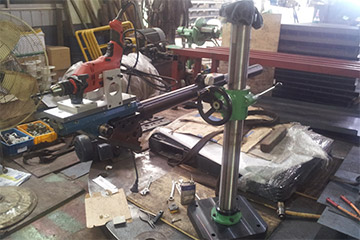

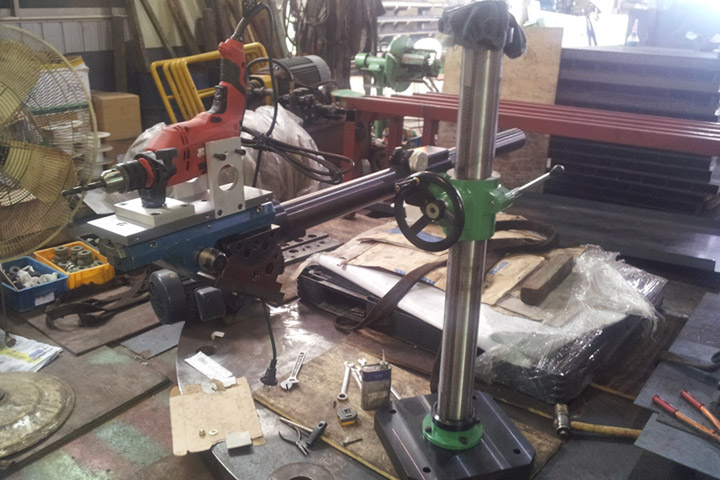

Axial Support ring Assembly Drilling JIG Device that can facilitate the tap working manually in the position with the angled of Axial Support ring.1.0MW-2.0ML-2.0MH
Jun, 2014
Doosan Heavy Industry
1 : 0.08/1 : 0.08
-

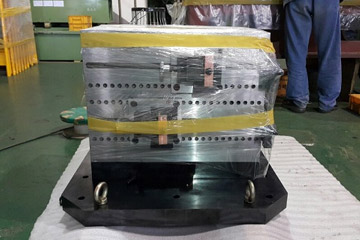

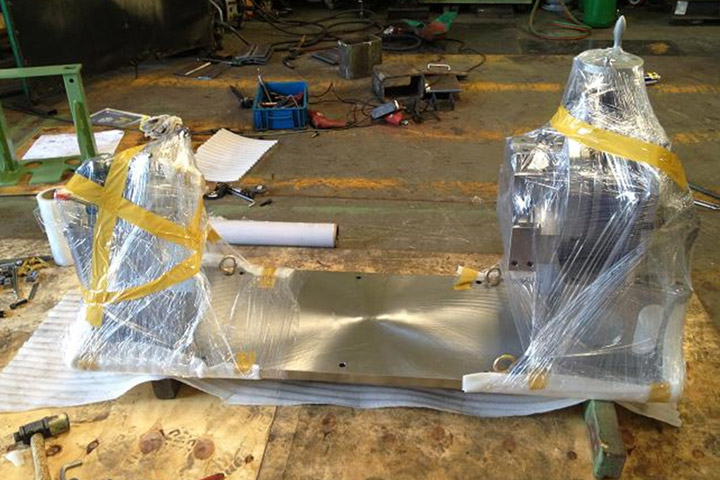

rotor clamping jig Rotor centring. It is possible to control up, down, left and right. Position tolerance of less than 0.02mm.0.4MW-1.2ML-0.8MH, Working Load 2ton
Aug, 2014
Doosan Heavy Industry
1 : 0.08/1 : 0.08
-
R-Forming jig Equipment of re-forming the rotor coil. Converted automatically from manually.2.5MW-2.5ML-2.5MH
Nov, 2014
Doosan Heavy Industry
1 : 0.4/1 : 0.5
-

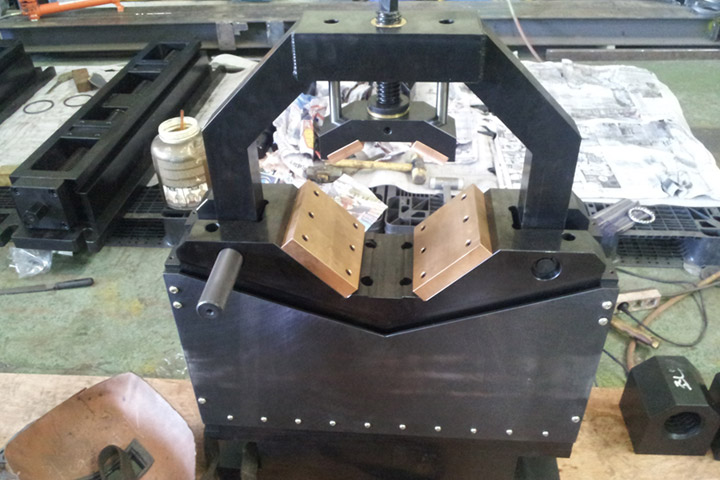

Bucket Processing Jig Easily be used in precision machining.0.8MW-0.8ML-1.2MH
May, 2015
Doosan Heavy Industry
1 : 0.66/1 : 0.84
-

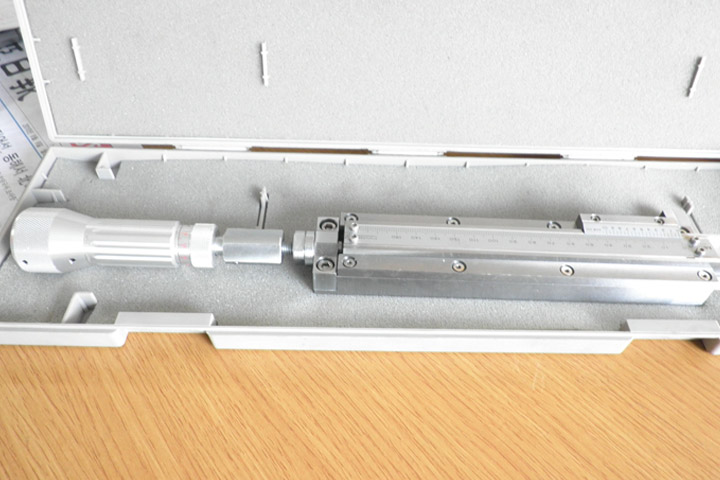

Special Torque Micrometer Among the narrow and deep space, it is possible to accurately measure the thickness.May, 2010
Doosan Heavy Industry
1 : 0.14/1 : 0.13
-
Flame Hardening Jig Jig for the flame hardening bucket to maintain the angle needed and to ensure that there is no slag0.7MW-1.2ML-0.6MH
Oct, 2011 and many others
Doosan Heavy Industry
1 : 0.44/1 : 0.42
-

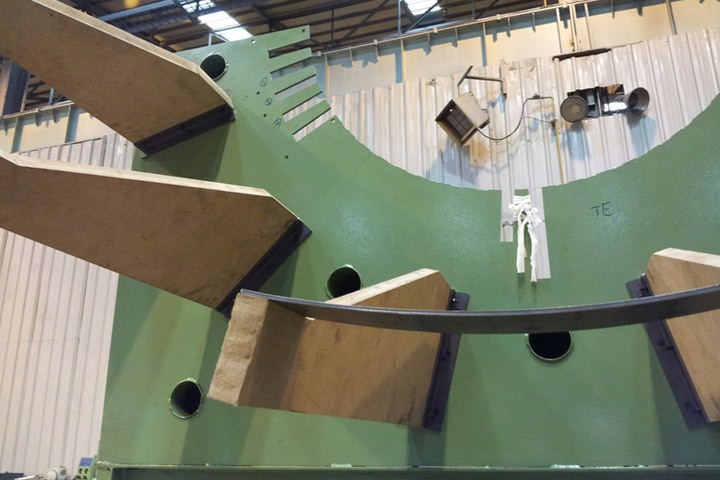

DUMY JIG Equipment to checking the exact shape and size of the generator stator windings.3.0MW-10ML-2.5MH
Jun, 2014
Doosan Heavy Industry
1 : 0.11/1 : 0.11
-
Nuclear Power Setup Jig SETUP JIG5.5MW-5.5ML-3.5MH (Working Load 120TON)
Sep, 2014
Doosan Heavy Industry
1 : 0.11/1 : 0.11
